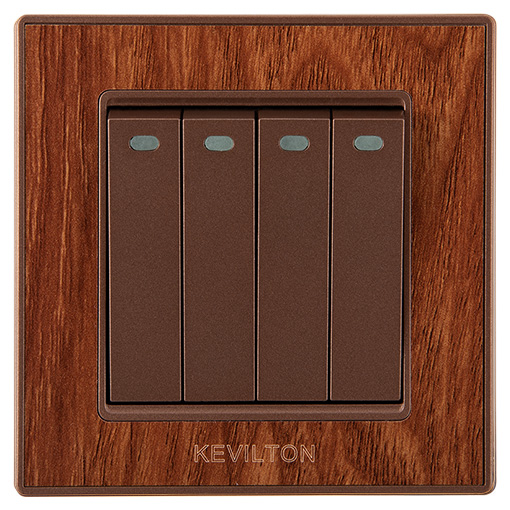

4 GANG 1 WAY
| General Data | |
| Standard Compliance | SLS 1000
|
| Warranty | Lifetime
|
| Technical data | |
| Key Features
|
Front plate is covered with wooden finishing formica layer |
| The inner plate and back housing made from poly-carbonate is of high impact strength and has fire retardant properties | |
| Integral rocker switch design with green indicators on switch caps
|
|
| Internally looped terminals in multiple gangs to save installation time & cost
|
|
| Embossed terminal markings on the rear housing ensure terminal identification and save wiring time
|
|
| Internal contact points covered with silver coating enhances the electric strength of the switch
|
|
| Alignment tolerance of mounting screw holes
|
|
| Power Supply | |
| Rated Voltage | 250V AC
|
| Rated Current | 10A
|
| Dimensions | |
| Steel Plate Size (H*W) | 86mm x 86mm
|
| Front Frame Size (H*W) | 86mm x 86mm
|
| Terminal Space Capacity | 2 x 1.5mm2
|
| Depth | 22mm
|
| Mounting Centers | 60.3mm
|
| Compatible Sunk Box | Standard Sunk Box (Depth - 35mm)
|
| Performance Parameters | |
| Electrical Endurance | 15000 cycles (30000 Movements)
|
| Material Overview | |
| Plastic | Polycarbonate and Nylon-FR grade
|
| Metal | Brass, Phosphor Bronze, Insulated steel plate
|
| Product Category | Teak Finishing |
