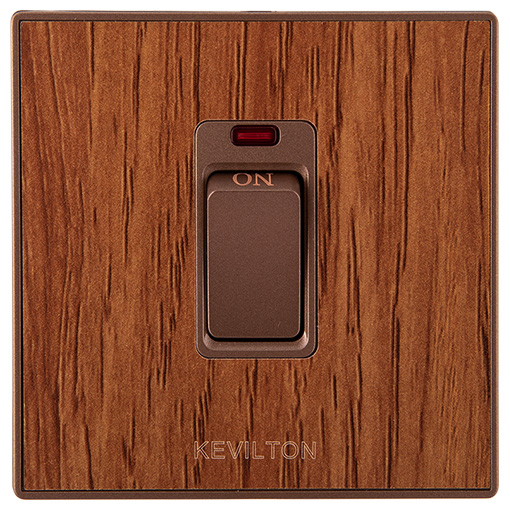

20A DOUBLE POLE WITH NEON

20A DOUBLE POLE WITH NEON

Download PDF
General Data
Standard Compliance SLS 1000
Warranty Lifetime


Technical data
Key Features
Front plate is covered with wooden finishing formica layer
The inner plate and back housing made from poly-carbonate is of high impact strength and has fire retardant properties
Integral rocker switch design with ON and OFF signs
Embossed terminal markings on the rear housing ensure terminal identification and save wiring  time
Internal contact points covered with silver coating enhances the electric strength of the switch
Alignment tolerance of mounting screw holes
Disconnects both live and natural connections for safer electrical isolation
Neon red indicator denotes Power ON


Power Supply
Rated Voltage 250V AC
Rated Current 20 A



Dimensions
Steel Plate Size (H*W) 86mm x 86mm
Front Frame Size (H*W) 86mm x 86mm
Terminal Space Capacity 2 x 2.5mm2
Depth 14mm
Mounting Centers 60.3mm
Compatible Sunk Box Standard Sunk Box (Depth - 35mm)



Performance Parameters
Electrical Endurance 5000 cycles (10000 Movements)


Material Overview
Plastic Polycarbonate and Nylon-FR grade
Metal Brass, Phosphor Bronze, Insulated steel plate, Silver on the contact points
Product Category Teak Finishing
