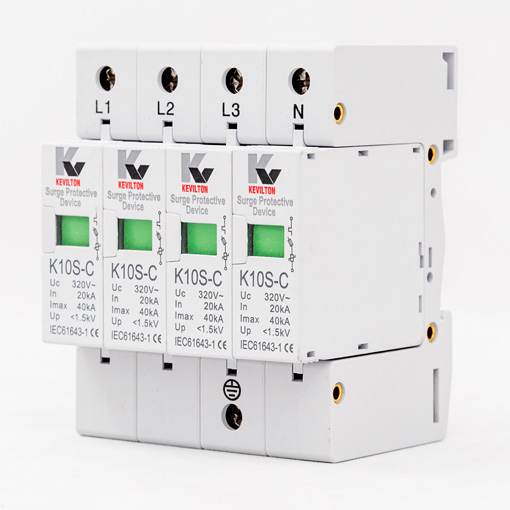

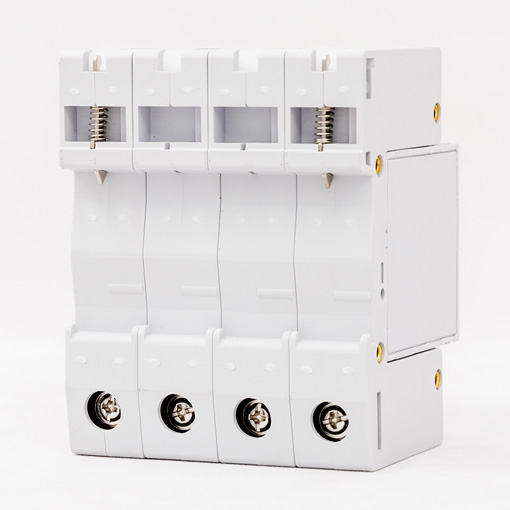

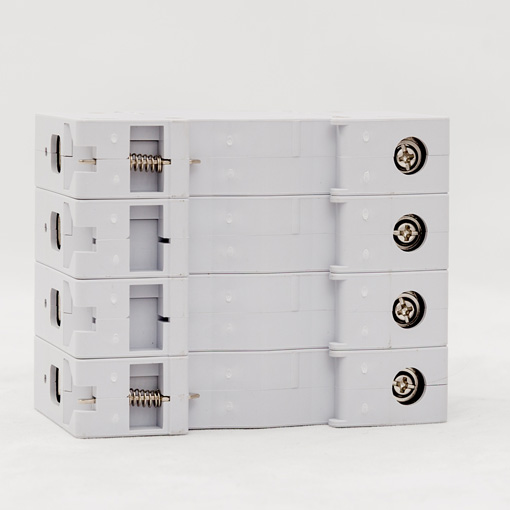

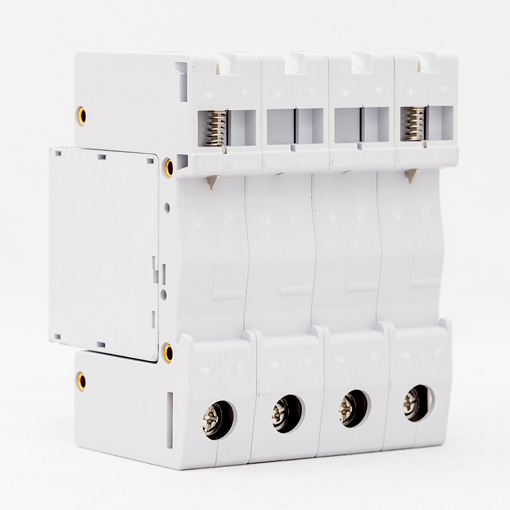

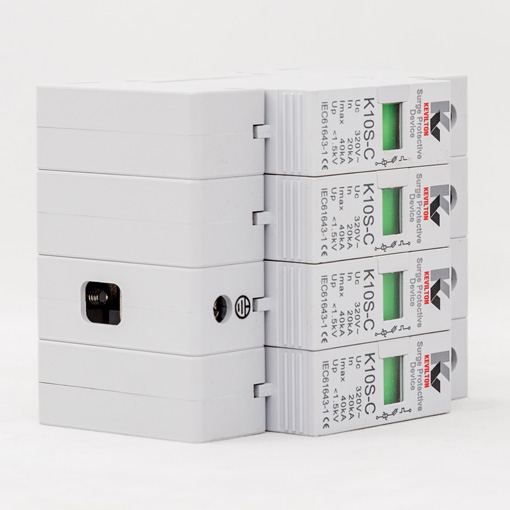

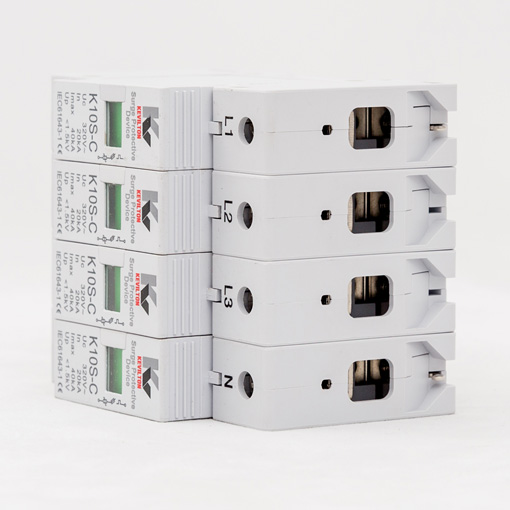

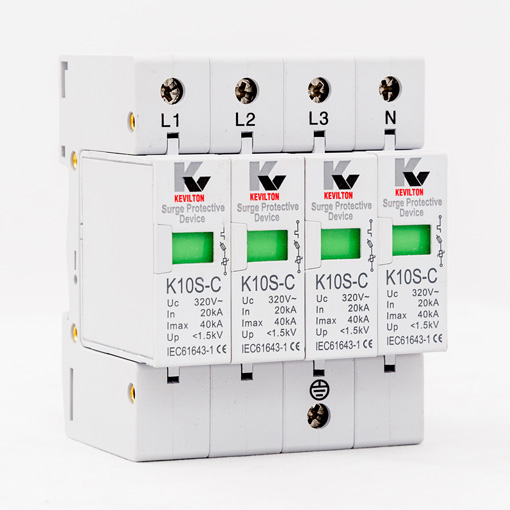

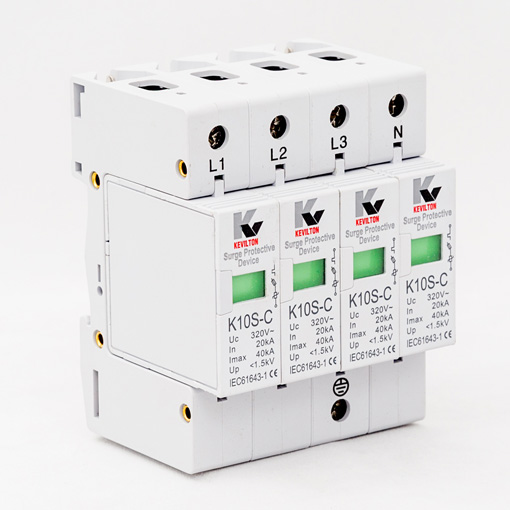

SPD 4 - POLE
| General Data | |
| Standards Compliance | IEC 61643
|
| Country of Manufacture | People Republic of China
|
| Warranty | 6 months only for the base
|
| Protection |
| Protects electric systems and on-loading electrical apparatus from indirect lightning surges and instantaneous over voltage
|
| Technical data | |
| Rated Voltage | 230V AC
|
| Number of Poles | 4POLE
|
| Response Time | ≤ 25nS
|
| Installation Class | Class II
|
| Maximum Continuous Operating Voltage-Uc |
320V
|
| Level of Voltage Protection-Up |
< 1.5 kV
|
| Nominal Discharge Current-In (8/20uS) |
20 kA
|
| Maximum Discharge Current Imax (8/20uS) | 40 kA
|
| Terminal Space Capacity | 25mm2 |
| External Dimensions (L*W*H) mm | 4P -78*72*81
|
| On/Off Indicating Window | Green-Normal Function
|
| Red-Functionless and Immediate Replacement Required
|
|
