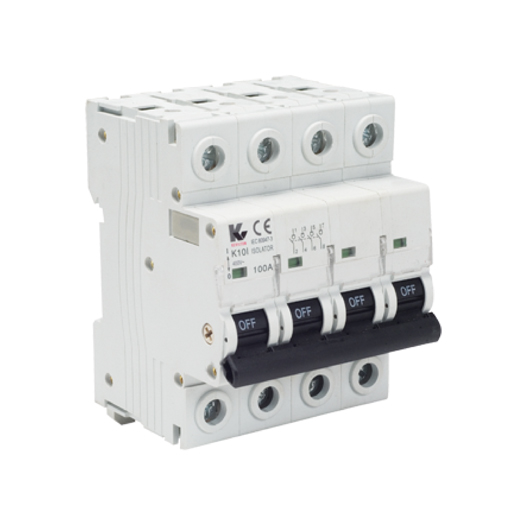

ISOLATOR 10kA 4 - POLE
| General Data | |
| Standards Compliance | IEC 60947
|
| Warranty | 10 Years from the Date of Selling
|
| Application | |
| Operation
|
Used as a total electrical isolating device (Main switch)
|
| Technical data | |
| Rated Voltage | 230/400V AC
|
| Rated Current (A) | 40, 63 & 100A
|
| Rated Frequency | 50/60Hz
|
| Electro Mechanical Endurance | 10000 cycles
|
| Number of Poles | 4POLE
|
| Mounting Feature in Flush type |
Adjustable type DIN rail mounting
|
| Connection Capacity |
25mm²
|
| Fastening Torque |
2 Nm
|
| DIN Rail |
Easy Mounting on 35mm DIN Rail
|
| Mounting Type |
Rail plug in
|
| Connecting Type |
Clamping terminal
|
| External Dimensions (L*W*H) mm |
4P -78*72*81
|
| Material Overview | |
| Plastic | Poly Amide (Fire Retardant Grade)
|
| Metal | Phosphor Bronze, Brass, Zinc plated steel
|
