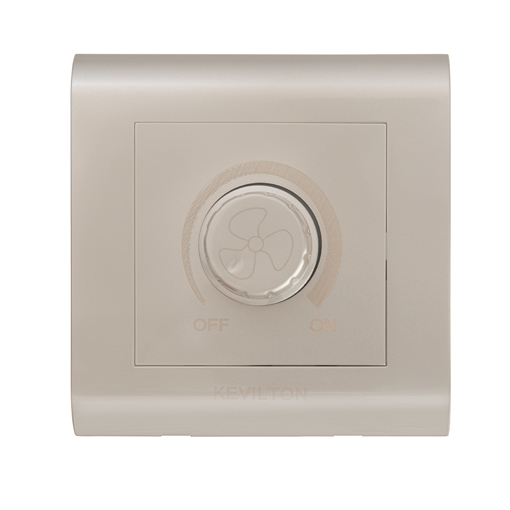

FAN CONTROLER

FAN CONTROLER

FAN CONTROLER

Download PDF
General Data
Warranty Lifetime


Technical data
Key Features
Consumes less energy when regulated
Five step speed control
Fan speed can be adjusted to a specified level
Free from hum during operation
The front plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties
Easy removal of front plate and frame
Alignment tolerance of mounting screw holes
Elegant colours to select, colour combinations possible for outer frames


Power Supply
Rated Voltage 220V AC
Rated Power 100W



Dimensions
Steel Plate Size (H*W) 85mm x 84mm
Front Frame Size (H*W) 88mm x 86mm
Terminal Space Capacity 1 x 1.5mm2
Depth 25mm
Mounting Centers 60.3mm
Compatible Sunk Box Standard Sunk Box (Depth - 35mm)



Performance Parameters
Electrical Endurance 4000 cycles


Material Overview
Plastic Polycarbonate
Metal Brass, Insulated steel plate
Product Colour Champagne
