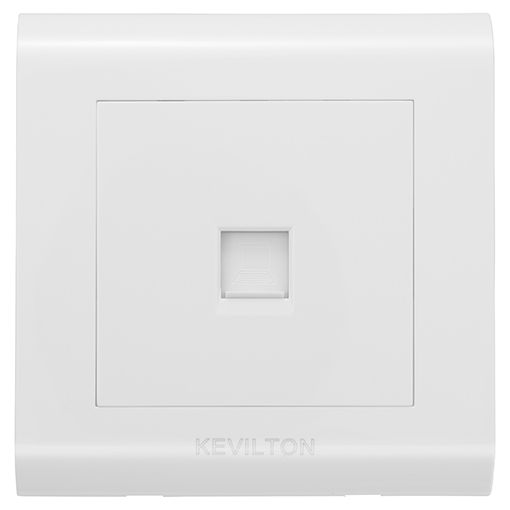

DATA SOCKET

BACK

    DATA SOCKET

    DATA SOCKET

    Download PDF
    General Data
    Warranty Lifetime
    Type CAT 5


    Technical data
    Key Features
    Better data transmission performance
    Gives higher signal-to-noise ratio
    Less cross talk
    Supports faster transmission speed and high bandwidth for domestic and commercial purposes
    Dust cover for the outlet when not in use
    The front plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties
    8 Way 8 Contact data outlet
    Easy removal of front plate and frame
    Alignment tolerance of mounting screw holes
    Elegant colours to select, colour combinations possible for outer frames


    Dimensions
    Steel Plate Size (H*W) 85mm x 84mm
    Front Frame Size (H*W) 88mm x 86mm
    Depth 31mm
    Mounting Centers 60.3mm
    Compatible Sunk Box Standard Sunk Box (Depth - 35mm)



    Material Overview
    Plastic Polycarbonate
    Metal Insulated steel plate
    Product Colour Ivory
