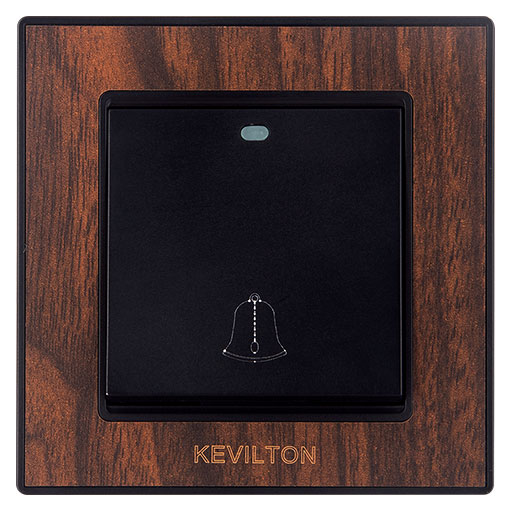

BELL PRESS

BELL PRESS

Download PDF

Standard compliance SLS 1000
Warranty
Lifetime


Technical data
Key Features
Front plate is covered with wooden finishing formica layer
The inner plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties
Embossed terminal markings on the rear housing ensures terminal identification and save wiring time
Internal contact points covered with silver coating enhances the electric strength of the switch
Alignment tolerance of mounting screw holes


Electrical Data
Rated Voltage 250V AC
Rated Current 10A


Dimensions
Steel Plate Size (H*W) 86mm x 86mm
Front Frame Size (H*W) 86mm x 86mm
Terminal Space Capacity 2 x 1.5mm2
Depth 22mm
Mounting Centers 60.3mm
Compatible Sunk Box Standard Sunk Box (Depth - 35mm)


Performance Parameters
Electrical Endurance 15000 cycles (30000 Movements)
Material Overview
Plastic Polycarbonate and Nylon-FR grade
Product Category Kumbuk Finishing
