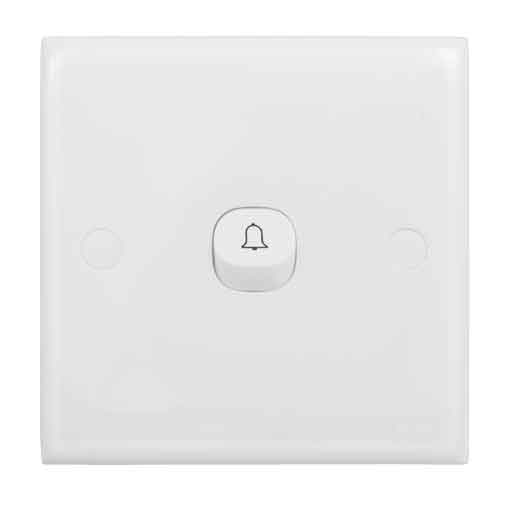

BELL PRESS
| Standards and Country of Origin | |
| Certification Mark | SLS 1000
|
| Country of manufacture | Sri Lanka
|
| Warranty | Lifetime
|
| Technical data | |
| Key Features
|
Integral rocker design of press switch with bell sign
|
| Embossed terminal markings on the rear housing ensure terminal identification that saves wiring time
|
|
| Internal contact points covered with silver coating enhances the electric strength of the switch
|
|
| The front plate made from polycarbonate is of high impact strength and has fire retardant properties
|
|
| Power Supply | |
| Rated Voltage | 250V AC
|
| Rated Current | 10A
|
| Dimensions | |
| Plate Size (H*W) | 86mm x 86mm
|
| Terminal Space Capacities | 2 x 1.5mm2
|
| Depth | 13mm
|
| Mounting Centers | 60.3mm
|
| Compatible Sunk Box | Standard Sunk Box (Depth - 35mm)
|
| Performance Parameters | |
| Electrical Endurance | 15000 cycles (30000 Movements)
|
| Material Overview | |
| Plastic | Polycarbonate and Nylon-FR grade
|
| Metal | Brass, Silver on the contact points
|
