| Technical data
|
| Rated Voltage |
AC 230/400V
|
| Rated Current (A)
|
40A/63A
|
| Rated Frequency |
50/60Hz
|
| Number of Poles |
2POLE
|
Rated Making and Breaking Capacity (Im)
|
500A for 40A, 630A for 63A
|
Rated Residual Operating Current (IΔn)
|
30mA, 100mA
|
Rated Conditional Short Circuit Current (Inc)
|
10kA
|
Rated Residual Non-operating Current (IΔno)
|
15, 50 & 150 (0.5 IΔn)
|
Tripping Duration –Instantaneous Tripping
|
≤0.1 S
|
Residual Current Characteristic
|
A, AC
|
Electro Mechanical Endurance
|
4000 cycles
|
Degree of Protection
|
IP 20
|
Terminal Space Capacity
|
25mm2
|
Fastening Torque
|
2 Nm
|

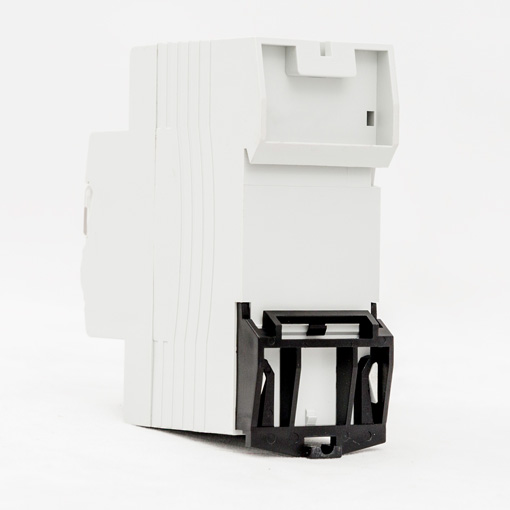

DIN Rail
|
Easy mounting on 35mm DIN rail
|
Mounting Feature in Flush Type
|
Adjustable type DIN rail mounting
|
Mounting Type
|
Rail plug in
|
Connecting Type
|
Clamping terminal
|
External Dimensions (L*W*H) mm
|
2P -78*36*81
|
