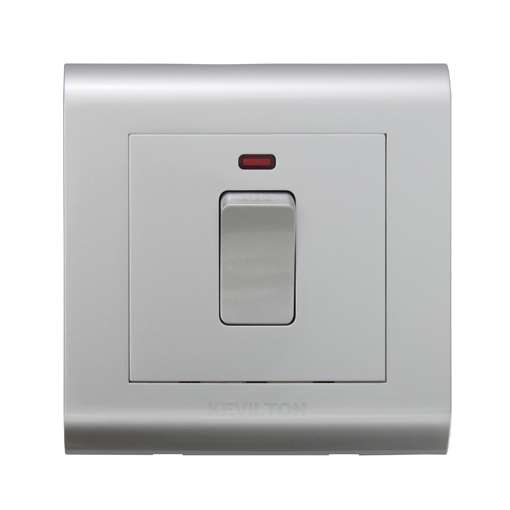

20A DOUBLE POLE WITH NEON
| General Data | |
| Standards Compliance | SLS 1000
|
| Warranty | Life-Time
|
| Key Features |
| Integral rocker switch design with ON and OFF signs
|
| Embossed terminal markings on the rear housing ensure terminal identification that saves time
|
| Internal contact points covered with silver coating enhance the electric strength of the switch
|
| The front plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties
|
| Easy removal of front plate and frame
|
| Alignment tolerance of mounting screw holes
|
| Elegant colours to select, colour combinations possible for outer frames
|
| Disconnects both live and neutral connections for safer electrical isolation
|
| Neon red indicator denotes power ON
|
| Power Supply | |
| Rated Voltage | 250V AC
|
| Rated Current (A) | 20A
|
| Dimensions | |
| Steel Plate Size (H*W) | 85mm x 84mm
|
| Front Frame Size (H*W) | 88mm x 86mm
|
| Terminal Space Capacity | 2 x 2.5mm2
|
| Depth | 17mm
|
| Mounting Centers | 60.3mm
|
| Compatible Sunk Box | Standard Sunk Box (Depth - 35mm)
|
| Performance Parameters | |
| Electrical Endurance | 5000 cycles (10000 Movements)
|
| Material Overview | |
| Plastic | Polycarbonate and Nylon-FR grade
|
| Metal | Brass, Phosphor Bronze, Insulated steel plate
|
| Product Colour | Platinum,
|
