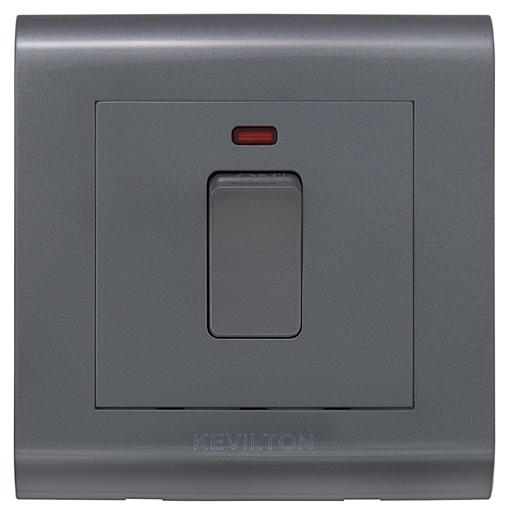

20A DOUBLE POLE WITH NEON

20A DOUBLE POLE WITH NEON

Download PDF
General  Data
Standards Compliance SLS 1000
Warranty Life-Time


Key Features
Integral rocker switch design with ON and OFF signs
Embossed terminal markings on the rear housing ensure terminal identification that saves time
Internal contact points covered with silver coating enhance the electric strength of the switch
The front plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties
Easy removal of front plate and frame
Alignment tolerance of mounting screw holes
Elegant colours to select, colour combinations possible for outer frames
Disconnects both live and neutral connections for safer electrical isolation
Neon red indicator denotes power ON


Power Supply
Rated Voltage 250V AC
Rated Current (A) 20A


Dimensions
Steel Plate Size (H*W) 85mm x 84mm
Front Frame Size (H*W) 88mm x 86mm
Terminal Space Capacity 2 x 2.5mm2
Depth 17mm
Mounting Centers 60.3mm
Compatible Sunk Box Standard Sunk Box (Depth - 35mm)


Performance Parameters
Electrical Endurance 5000 cycles (10000 Movements)


Material Overview
Plastic Polycarbonate and Nylon-FR grade
Metal Brass, Phosphor Bronze, Insulated steel plate
Product Colour Chrome
