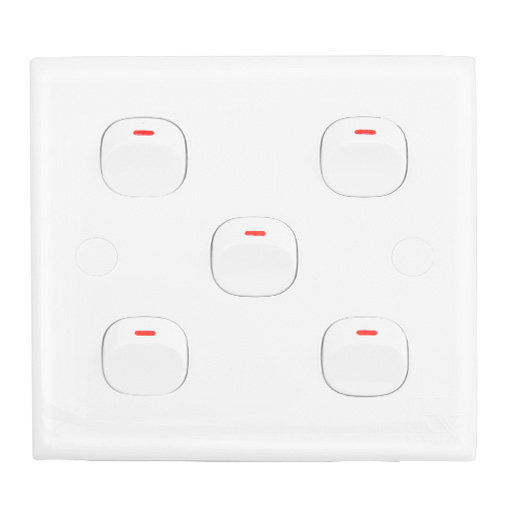

5 GANG 1 WAY

5 GANG 1 WAY

Download PDF
General  Data
Certification Mark SLS 1000
Country of Manufacture Sri Lanka
Warranty Lifetime


Key Features
Integral rocker design of switch provides clear red indication when switched on
Embossed terminal markings on the rear housing ensure terminal identification that saves wiring time
Internal contact points covered with silver coating enhances the electric strength of the switch
The front plate made from polycarbonate is of high impact strength and has fire retardant properties


Power Supply
Rated Voltage 250V AC
Rated Current 10A


Dimensions
Plate Size 86mm x 86mm
Terminal Space Capacity  2 x 1.5mm²
Depth 13mm
Mounting Centers 60.3mm
Compatible Sunk Box Standard Sunk Box (Depth - 35mm)


Performance Parameters
Electrical Endurance 15000 cycles (30000 Movements)


Material Overview
Plastic Polycarbonate and Nylon-FR grade
Metal Brass, Silver on the contact points
