General Data | |
Standard Compliance | SLS 734
|
Warranty | Lifetime
|
Technical data | |
Key Features
|

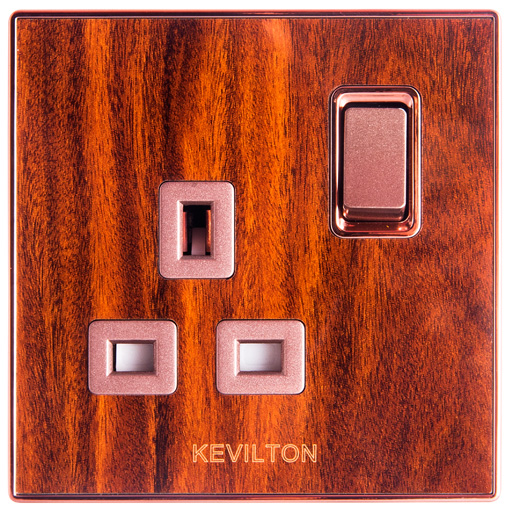

Front plate is covered with wooden finishing formica layer
|
The inner plate and back housing made from poly-carbonate is of high impact strength and has fire retardant properties
|
|
Embossed terminal markings on the rear housing ensure terminal identification and save wiring time
|
|
Internal contact points covered with silver coating enhances the electric strength of the switch
|
|
Safety shutter operated from earth pin ensures that the earth terminal makes the contact first and breaks last, thereby providing maximum safety
|
|
Alignment tolerance of mounting screw holes
|
Power Supply | |
Rated Voltage | 250V AC
|
Rated Current | 13 A
|
Dimensions | |
Steel Plate Size (H*W) | 86mm x 86mm
|
Front Frame Size (H*W) | 86mm x 86mm
|
Terminal Space Capacity | L/N Terminal - 2 x 2.5mm2, E Terminal - 2 x 2.5mm2
|
Depth | 15mm
|
Mounting Centers | 60.3mm
|
Compatible Sunk Box | Standard Sunk Box (Depth - 35mm)
|
Performance Parameters | |
Electrical Endurance | 15000 cycles (30000 Movements)
|
Material Overview | |
Plastic | Polycarbonate and Nylon-FR grade
|
Metal | Brass, Phosphor Bronze, Insulated steel plate, Silver on the contact points
|
Product Category | Mahogany Finishing
|
