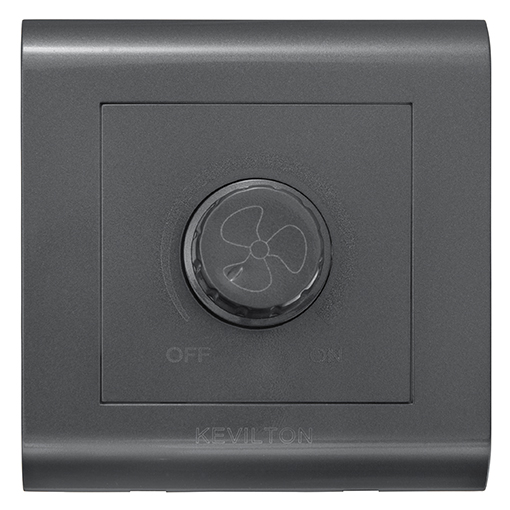

FAN CONTROLER
| General Data | |
| Warranty | Lifetime
|
| Technical data | |
| Key Features
|
Consumes less energy when regulated
|
| Flexible speed control
|
|
| Can install a number of fans up to a maximum capacity of 400W
|
|
| Fan speed can be adjusted to a desired level
|
|
| The front plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties
|
|
| Easy removal of front plate and frame
|
|
| Alignment tolerance of mounting screw holes
|
|
| Elegant colours to select, colour combinations possible for outer frames
|
|
| Power Supply | |
| Rated Voltage | 220V AC
|
| Rated Power | 400W
|
| Dimensions | |
| Steel Plate Size (H*W) | 85mm x 84mm
|
| Front Frame Size (H*W) | 88mm x 86mm
|
| Terminal Space Capacity | 1 x 1.5mm2
|
| Depth | 25mm
|
| Mounting Centers | 60.3mm
|
| Compatible Sunk Box | Standard Sunk Box (Depth - 35mm)
|
| Performance Parameters | |
| Electrical Endurance | 4000 cycles
|
| Material Overview | |
| Plastic | Polycarbonate
|
| Metal | Brass, Insulated steel plate
|
| Product Colour | Chrome
|
