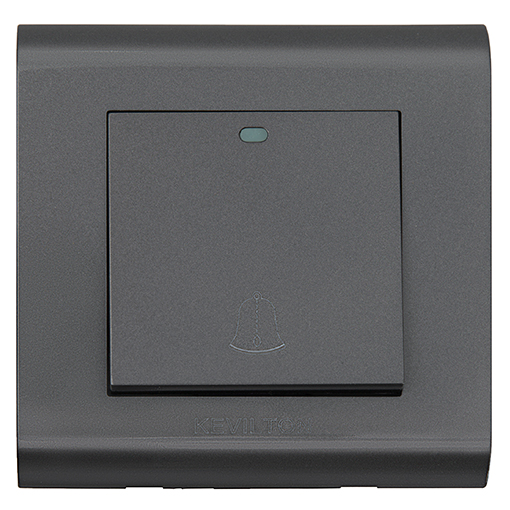

BELL PRESS

BELL PRESS

Download PDF
General Data
Standard Compliance SLS 1000
Warranty Lifetime


Technical data
Key Features
Embossed terminal markings on the rear housing ensure terminal identification which could save time
Internal contact points covered with silver coating enhances the electric strength of the switch
The front plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties
Easy removal of dolly cap and frame
Alignment tolerance of mounting screw holes
Elegant colours to select, colour combinations possible for outer frames


Power Supply
Rated Voltage 250V AC
Rated Current 10A



Dimensions
Steel Plate Size (H*W) 85mm x 84mm
Front Frame Size (H*W) 88mm x 86mm
Terminal Space Capacity 2 x 1.5mm2
Depth 24mm
Mounting Centers 60.3mm
Compatible Sunk Box Standard Sunk Box (Depth - 35mm)



Performance Parameters
Electrical Endurance 15000 cycles (30000 Movements)


Material Overview
Plastic Polycarbonate and Nylon-FR grade
Metal Brass, Phosphor Bronze, Insulated steel plate
Product Colour Chrome
