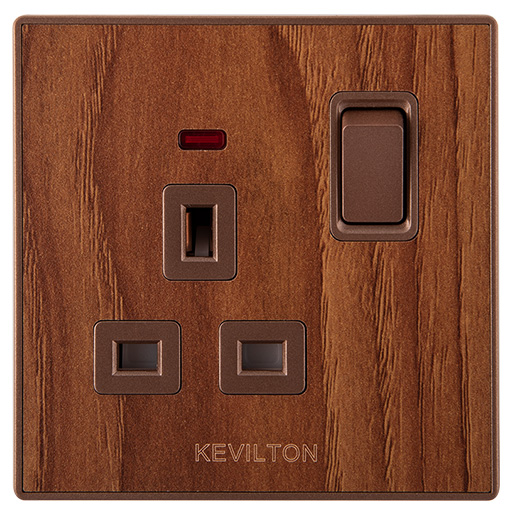

13A SOCKET WITH NEON

BACK

13A SOCKET WITH NEON

13A SOCKET WITH NEON

Download PDF
General Data
Standard Compliance SLS 734
Warranty Lifetime


Technical data
Key Features
Front plate is covered with wooden finishing formica layer
The inner plate and back housing made from poly-carbonate is of high impact strength and has fire retardant properties
Red indicator gives clear ON indication for Neon socket outlets
Embossed terminal markings on the rear housing ensure terminal identification and save wiring time
Internal contact points covered with silver coating enhances the electric strength of the switch
Safety shutter operated from earth pin ensures that the earth terminal makes the contact first and breaks last, thereby providing maximum safety
Alignment tolerance of mounting screw holes


Power Supply
Rated Voltage 250V AC
Rated Current 13 A



Dimensions
Steel Plate Size (H*W) 86mm x 86mm
Front Frame Size (H*W) 86mm x 86mm
Terminal Space Capacity L/N Terminal - 2 x 2.5mm2, E Terminal - 2 x 2.5mm2
Depth 15mm
Mounting Centers 60.3mm
Compatible Sunk Box Standard Sunk Box (Depth - 35mm)



Performance Parameters
Electrical Endurance 15000 cycles (30000 Movements)


Material Overview
Plastic Polycarbonate and Nylon-FR grade
Metal Brass, Phosphor Bronze, Insulated steel plate, Silver on the contact points
Product Category Teak Finishing
